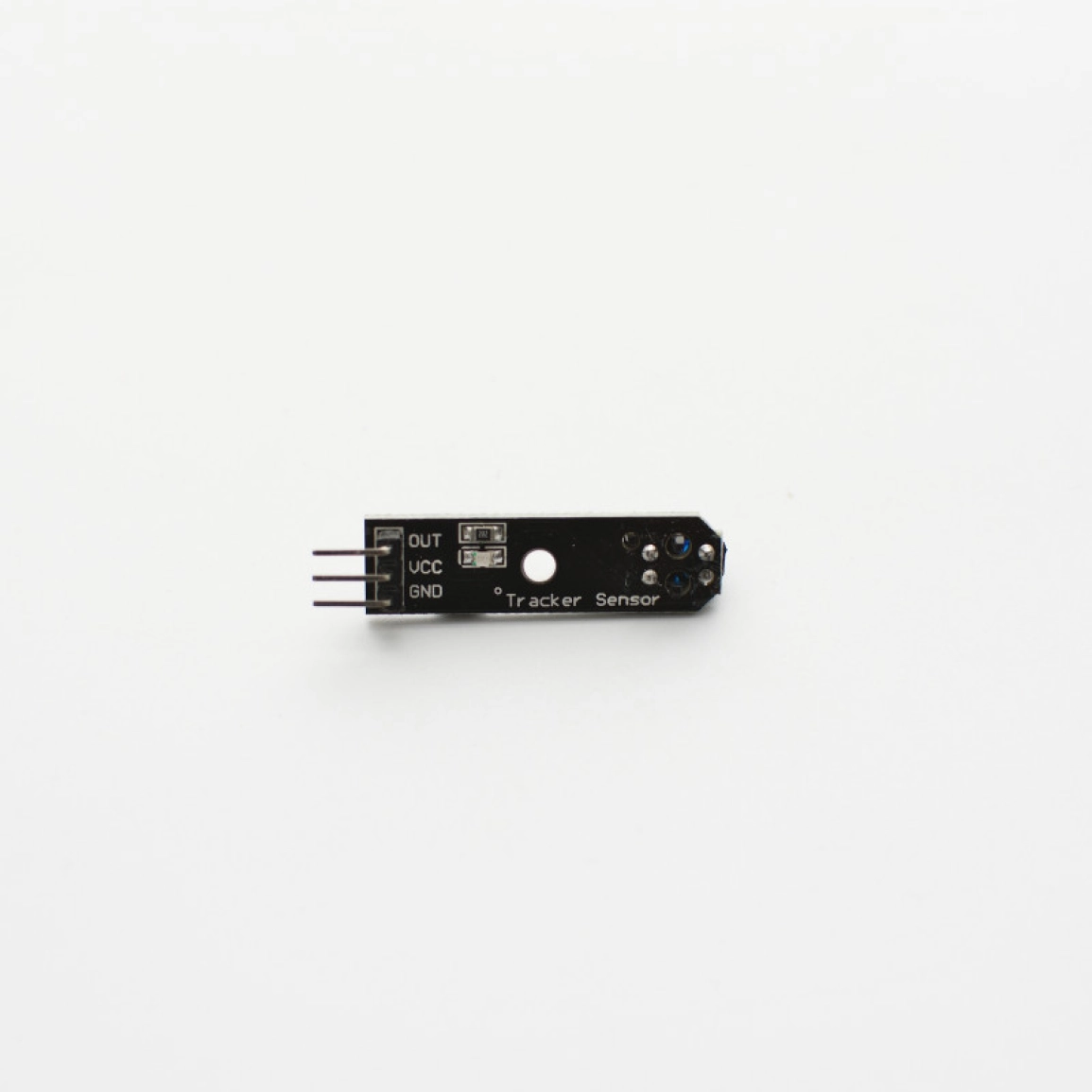

Infracrveni senzor sa TCRT5000

Osnovne značajke
TCRT5000 IR Infrared Line Track Follower Sensor Obstacle Avoidance Module For Arduino
TCRT5000 sensors constantly emit infrared infrared emitting diodes, infrared rays emitted when reflected or not reflected
but the intensity is not big enough, the infrared receiver has been in the off state,...
22,00kn
Dosegli ste maksimum raspoloživosti - 0

Jednokratno plaćanje:
  • Internet bankarstvo (virman)
  • Pouzećem - plaćanje gotovinom dostavljaču kod isporuke paketa
  • Maestro, MasterCard, Visa, Visa Premium
Obročno plaćanje:
  • MasterCard ZABA do 24 rate
  • Visa Premium do 10 rata

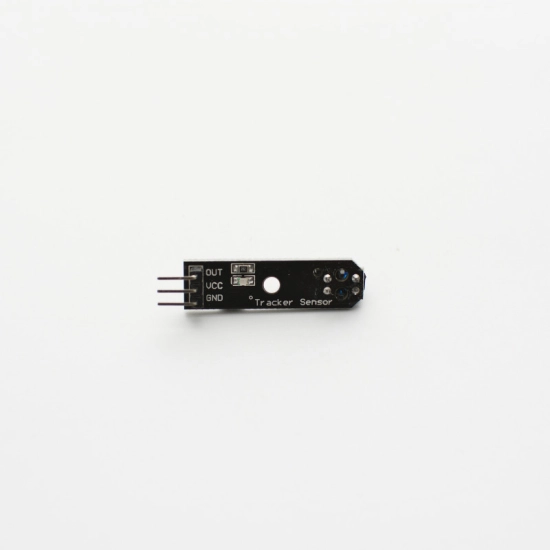

Infracrveni senzor sa TCRT5000
22,00kn
Opis
TCRT5000 IR Infrared Line Track Follower Sensor Obstacle Avoidance Module For Arduino

TCRT5000 sensors constantly emit infrared infrared emitting diodes, infrared rays emitted when reflected or not reflected
but the intensity is not big enough, the infrared receiver has been in the off state, then the output of the module is low,
indicating diode remains off state; when the object appeared to be detected in the detection range, the infrared rays
are reflected back and of sufficient intensity, infrared receiver tube saturation, the output side module is high, indicator LED is lit.


1. TCRT5000 infracrveni reflektirajući senzor
2. Detektira reflektiranu udaljenost: 1 mm ~ 25 mm
3. Radni napon: 5V
4. Izlazni format: digitalni signal (0 i 1)
5. Fiksna rupa za vijak za jednostavnu instalaciju
6. Veličina male PCB ploče: 3,5 cm x 1 cm
7. Primjena: uzorkovanje pulsnih podataka mjerača, detekcija rezača papira faks uređaja, detekcija prepreka, detekcija crne i bijele linije

Ožičenje:

1, VCC: pozitivno napajanje (5V)
2, GND: napajanje je negativno
3, OUT: visoki/niski signal prekidača (digitalni signal 0 i 1)
