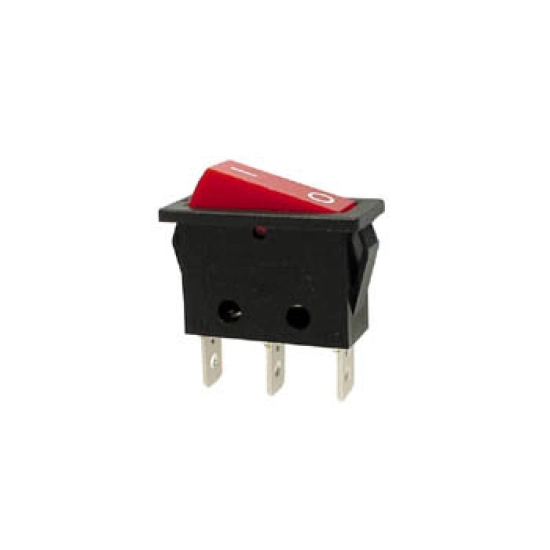

Prekidač VAGA SA TINJALICOM, JEDNOSTRUKI 32*14 mm
Osnovne značajke
Specificationstype: ON-OFF SPST
cap: red
remark: with red neon light
contact rating: 10A/250Vac, 16A/125Vac
electrical life: 20000 cycles
mechanical life: 50000 cycles
contact resistance: 50mohm
insulation resistance: min. 100Mohm at...
2,60€
Dosegli ste maksimum raspoloživosti - 151
Način plaćanja na web shopu
Jednokratno plaćanje:
- Internet bankarstvo (virman)
- Pouzećem - plaćanje gotovinom dostavljaču kod isporuke paketa
- Maestro, MasterCard, Visa, Visa Premium
Obročno plaćanje:
- MasterCard ZABA do 24 rate
- Visa Premium do 10 rata
2,60€
Opis
Specificationstype: ON-OFF SPST
cap: red
remark: with red neon light
contact rating: 10A/250Vac, 16A/125Vac
electrical life: 20000 cycles
mechanical life: 50000 cycles
contact resistance: 50mohm
insulation resistance: min. 100Mohm at 500Vdc
dielectric strength: 1500Vac / 1 minute
materials:
housing: 66 nylon (UL94V-2)
actuator: 66 nylon (UL94V-2)
movable contacts: copper, silver-plated
stationary contacts: copper, silver-plated
terminals: copper, silver-plated
contact: spring-loaded
tehnički podaci:
- type: ON-OFF SPST
cap: red
remark: with red neon light
contact rating: 10A/250Vac, 16A/125Vac
electrical life: 20000 cycles
mechanical life: 50000 cycles
contact resistance: 50mohm
insulation resistance: min. 100Mohm at 500Vdc
dielectric strength: 1500Vac / 1 minute
materials:
housing: 66 nylon (UL94V-2)
actuator: 66 nylon (UL94V-2)
movable contacts: copper, silver-plated
stationary contacts: copper, silver-plated
terminals: copper, silver-plated
contact: spring-loaded
