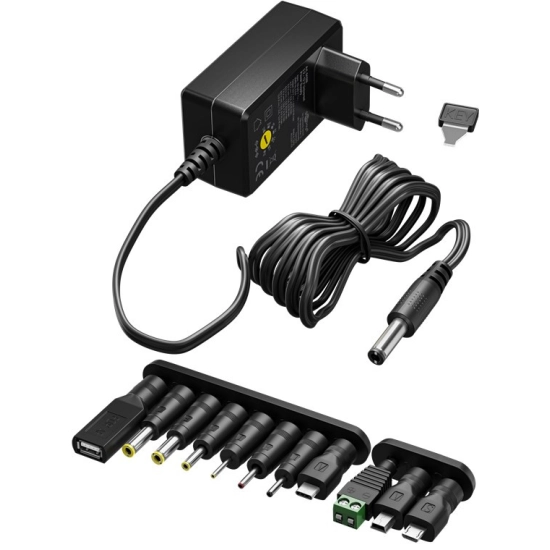

Adapter switch. DC 3-12 V 0,6A, sa 11 konektora + USB Goobay 64571

Opis

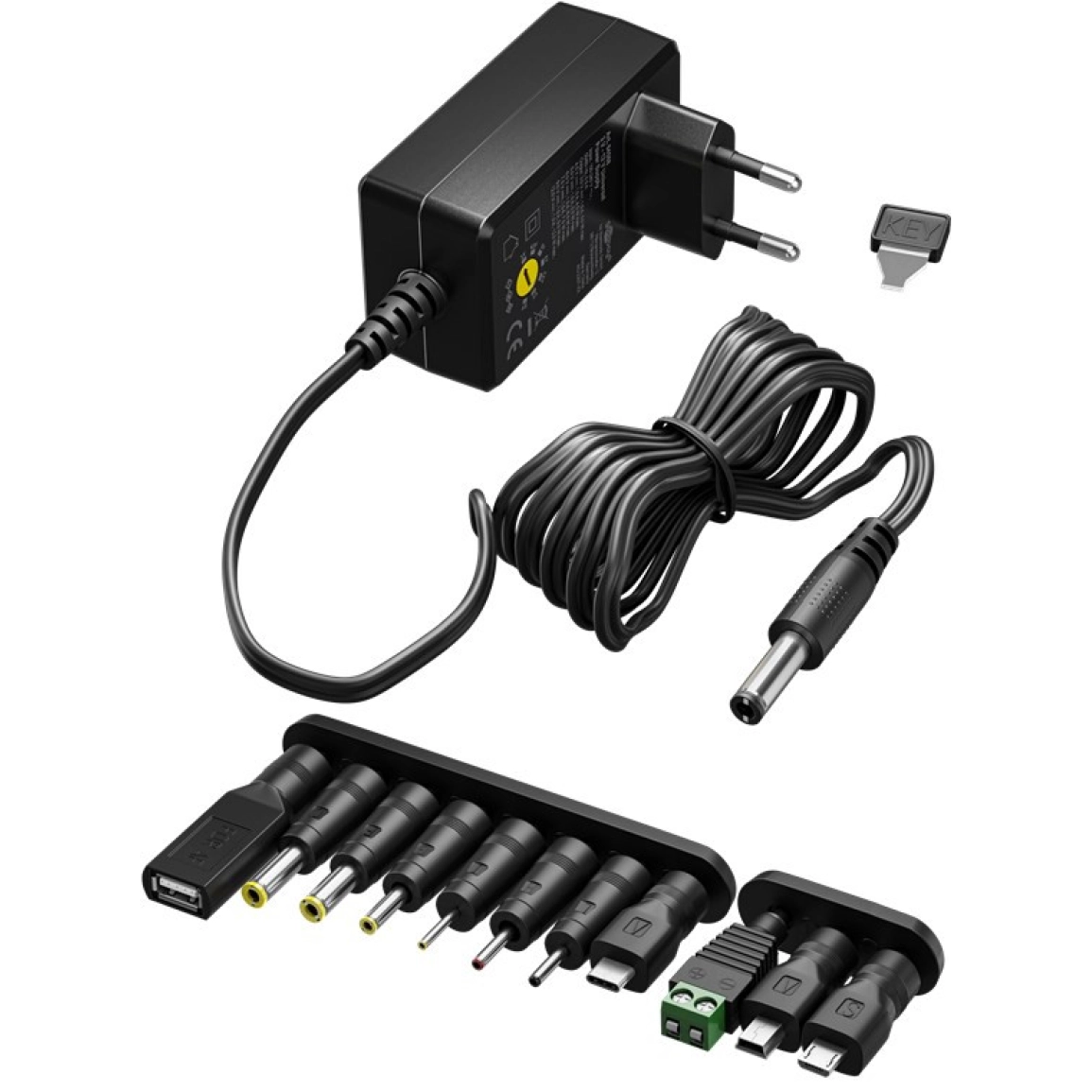

The versatile power supply with the innovative USB tops and interchangeable DC adapters is the handy all-rounder for your small devices. With the adapters and the cutting-edge USB-C™ connector, you always have the right connection for your electronic devices at hand - from radios to routers.

Power supply with variable voltage, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital picture frame, dartboard, baby monitor or toy

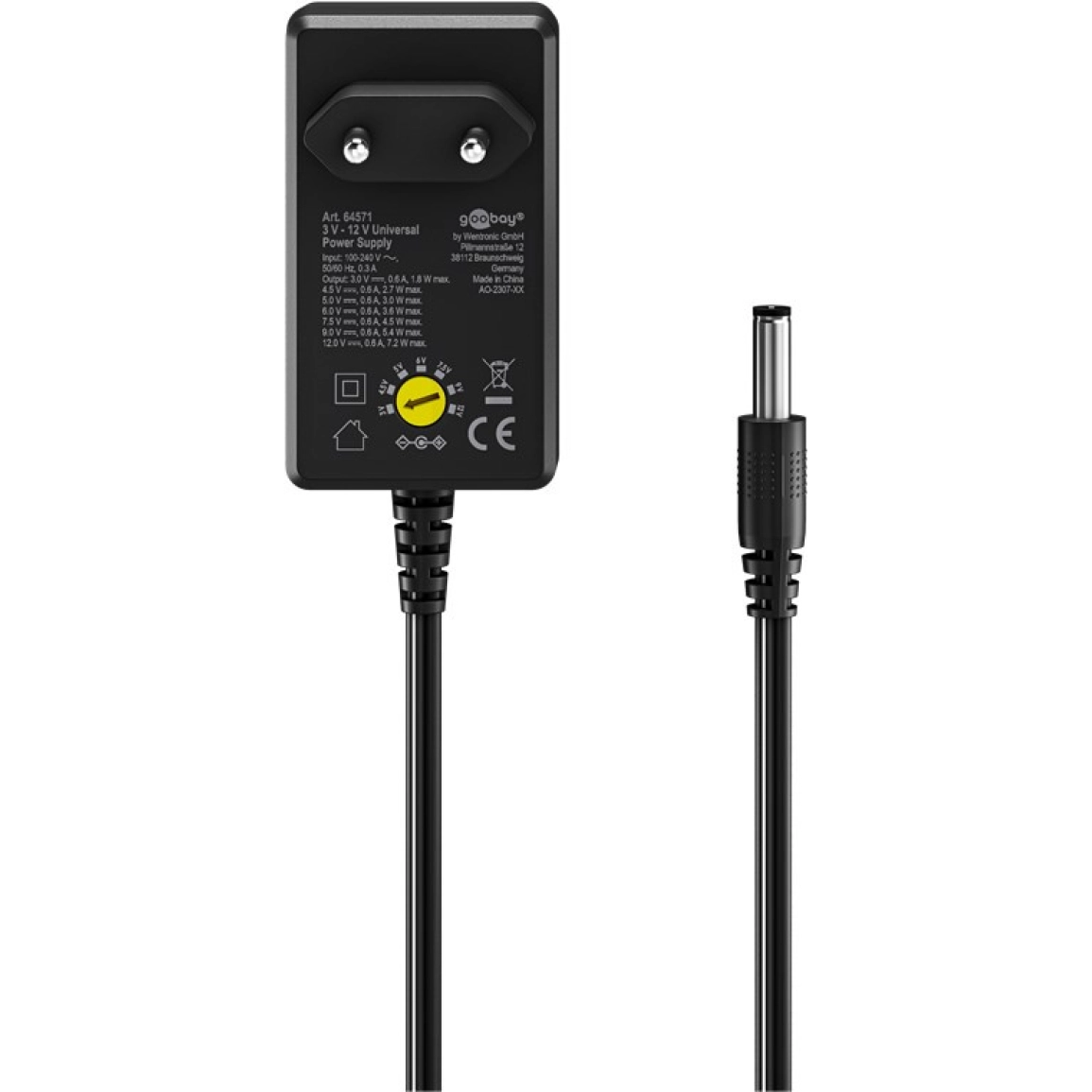

The output voltage can be regulated via the enclosed rotary key for selecting 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 0.6 A
The USB-C™ adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply a viable, long-term option
Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones

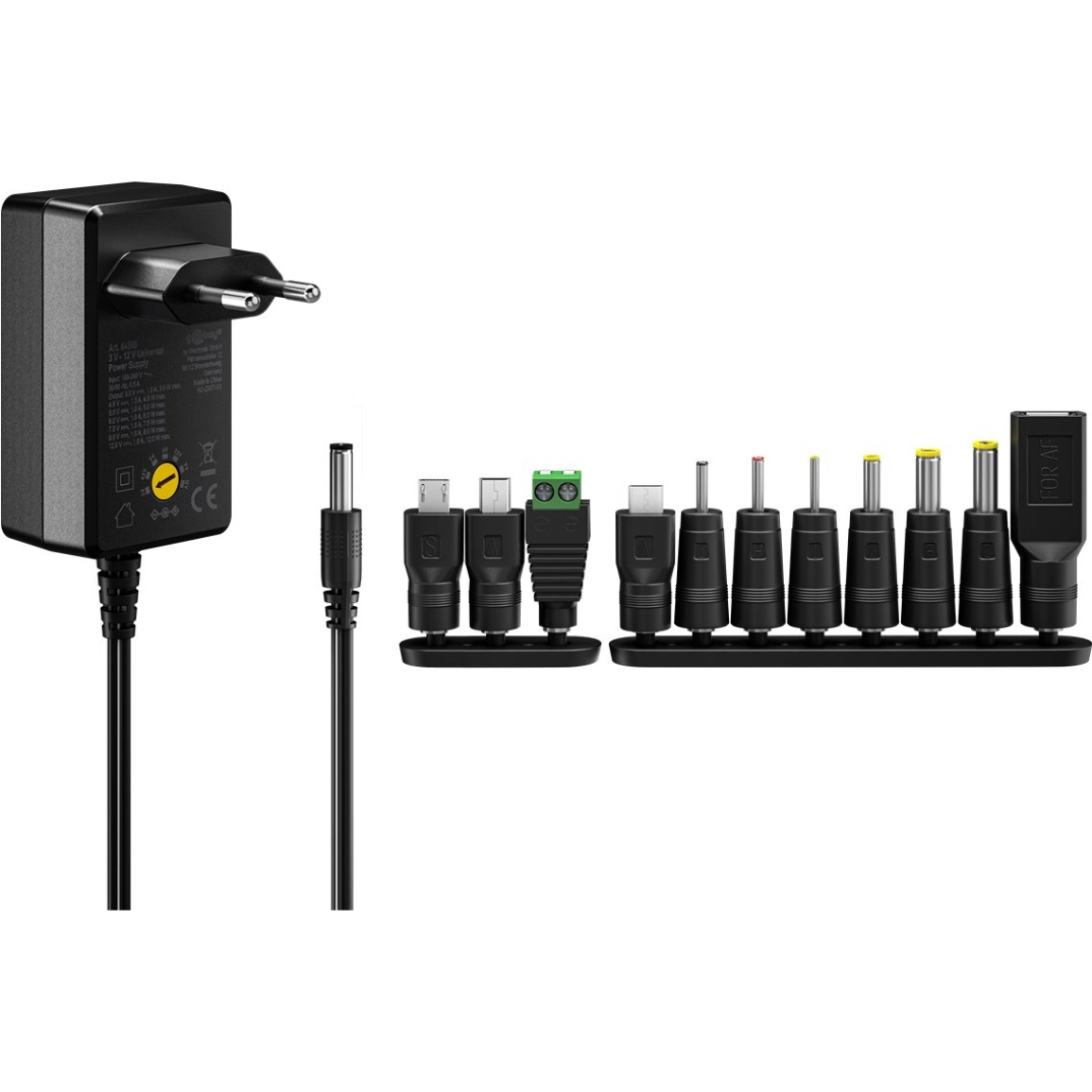

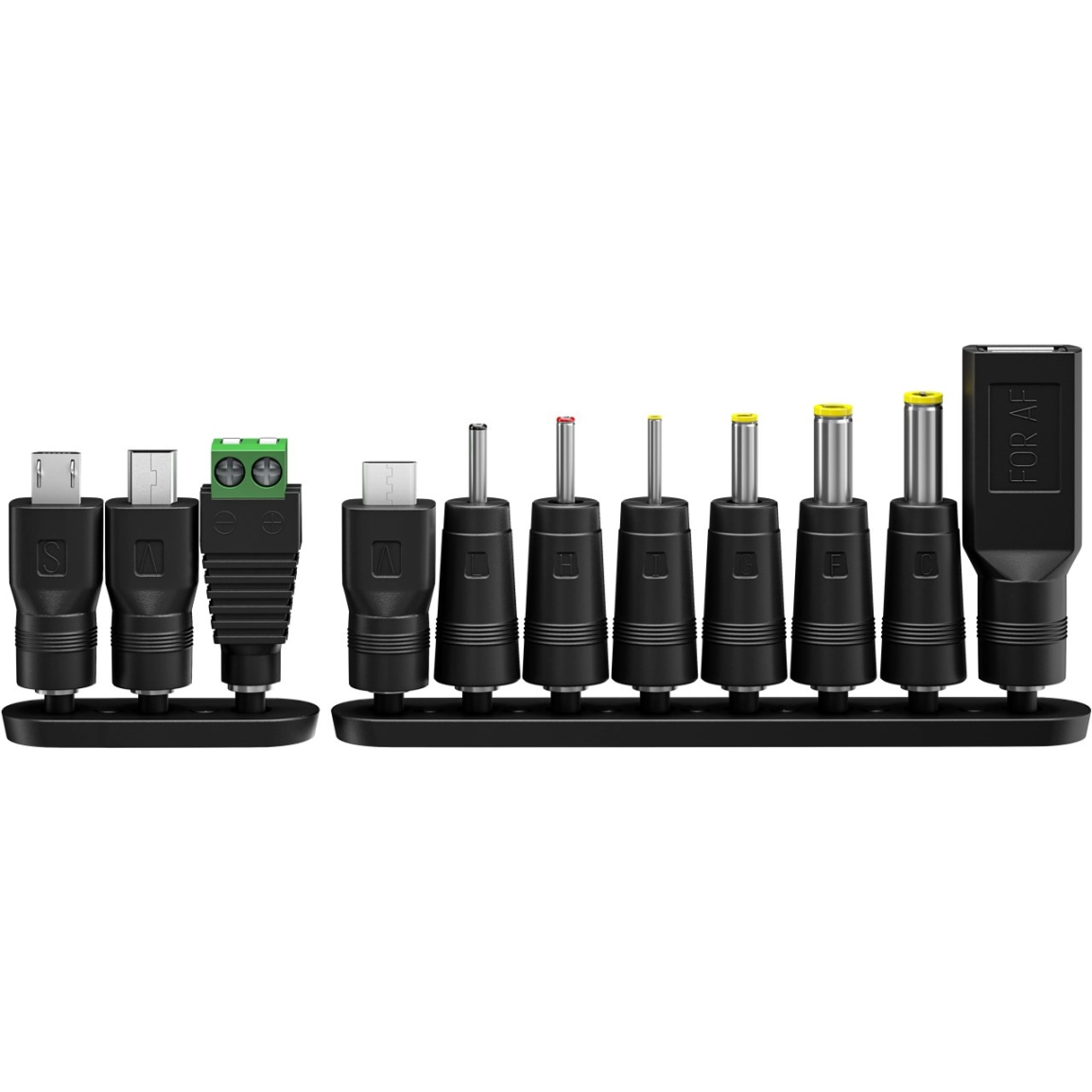

Incl. permanently attached DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm
With the interchangeable DC adapters, the 12 V power supply unit with Europlug (CEE 7/16) eliminates the need to purchase additional chargers
Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent


Technical specifications
ErP
Average active efficiency
72.9 %
No-load power consumption
0.09 W
Performance
max. performance
7.2 W
Output

3.0 V max. 0.6 A (1.8 W) DC

4.5 V max. 0.6 A (2.7 W) DC

5.0 V max. 0.6 A (3.0 W) DC

6.0 V max. 0.6 A (3.6 W) DC

7.5 V max. 0.6 A (4.5 W) DC

9.0 V max. 0.6 A (5.4 W) DC

12.0 V max. 0.6 A (7.2 W) DC
max. performance
7.2 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Input, Voltage Range
100 - 240 (AC) V
Output, max. amperage
0.6 A
Output, max. amperage
0.6 A
Input current
0.3 A
Cable
Cable length
1.8 m
General
Color
black
Markings
CE, WEEE, Haus, Quader
Packaging type
Bulk
Dimensions / Weight
Length
76.45 mm
Width
44 mm
Height
69.2 mm
Weight
105 g
